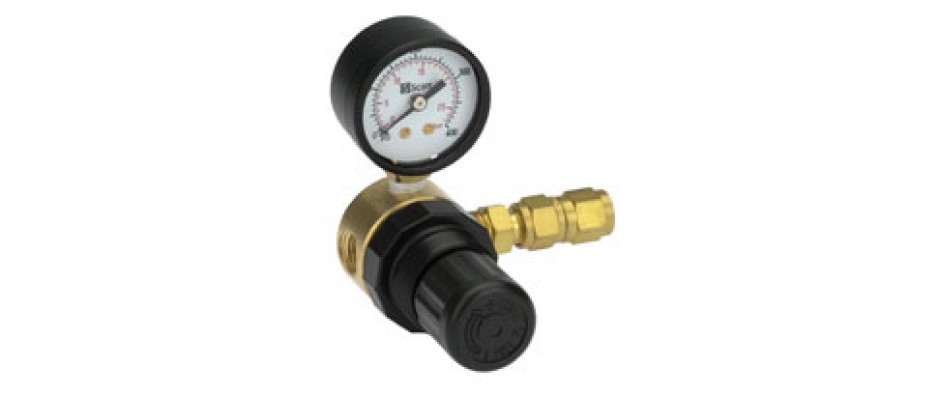

通用減壓閥 型號24
與4升和 48升
Scott/液化空氣運輸氣配合使用的壓力減壓閥
使用CGA160進樣接口連接14-升Scott/液化空氣運輸氣。使用CGA165進樣接口連接48-升Scott/液化空氣運輸氣。
規格:
*大進口壓力: 300 psig
出口壓力范圍: 2–10 psig
*大輸送壓力: 25 psig
工作溫度范圍: 35
°F -150 °F (2 °C -65 °C)
出口接頭: 螺紋標準 1/4"的螺母
材料構成:
主體：黃銅
膜片:
Viton
閥座: 乙縮醛
密封: Viton
訂貨信息：
通用減壓閥 型號24
| 產品描述 | 包裝量 | 貨號 |
| 壓力減壓閥, CGA 160
進口接頭 | ea. | 22690 |
| 壓力調減壓閥 CGA 165
進口接頭 | ea. | 22691 |
Benefits/Features
Miniature size.
Nonrelieving type.
Tamper-resistant, locking control knob.
Delivery pressure can be preset.
Specifications
Inlet Pressure: 300 psig (20 bar) maximum
Operating Temperature Range:
35°F to 150°F (1°C to 65°C)
Flow Coefficient: Cv = 0.36
Inlet Connection: CGA 160 or 165(1/4" AN flare)
Outlet Connection: CGA 165 1/4" NPT Female
Inlet Port: 1/4" NPT Female
Outlet Port: 1/4" NPT Female
Gauge: 1.5" (41 mm) face
Weight: 1 lb. (0.5 kg)
Materials of Construction
Body: Brass
Diaphragm: Viton?
Seat: Acetal
Seal: Viton?
Gauge: Phosphor bronze
Bonnet: Acetal
| Model 24 | Delivery Pressure Range 輸送壓力范圍 | Delivery Pressure Gauge 輸送壓力表 | Cylinder Pressure Gauge氣缸壓力表 |
| Brass 黃銅 | psig | bar |
| psig | bar |
| Q1-24AV-(*)-(**) | 1 – 10 | 0.1 – 0.7 | None | 0 – 400 | 0 – 28 |
| Q1-24BV-(*)-(**) | 2 – 25 | 0.1 – 2 | None | 0 – 400 | 0 – 28 |
| Q1-24CV-(*)-(**) | 5 – 50 | 0.3 – 4 | None | 0 – 400 | 0 – 28 |
* Specify CGA 160 for SCOTTY 14 or CGA 165 for SCOTTY 48 or 221.
** Specify outlet connections below by adding a suffix code number only to the regulator model number. Assembly included.
Suffix Code 1: needle valve, brass, 1/4" NPT Male (Model No. Q4-61B-4M)
Suffix Code 2: hose connection, 1/4" diameter with integral flow orifice 1900 to 2800 mL/min (Model No. Q5-91H-B440)
