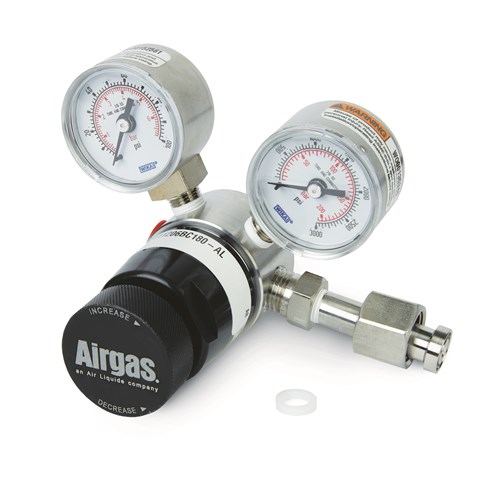

Scott/Air Liquide/ Airgas 高純VOC 壓力減壓閥
單級, 不銹鋼.
兩個壓力表，CGA-180 接頭。
*大進口壓力為3,000 psig。
不銹鋼膜片和
Kel-F閥座。
1/4NPT-英寸壓縮出口管道
內部體積小: 3.03 cc.
即使在低流速的情況下，也能準確控制壓力。
單獨測試泄漏和雜質。
訂貨信息：

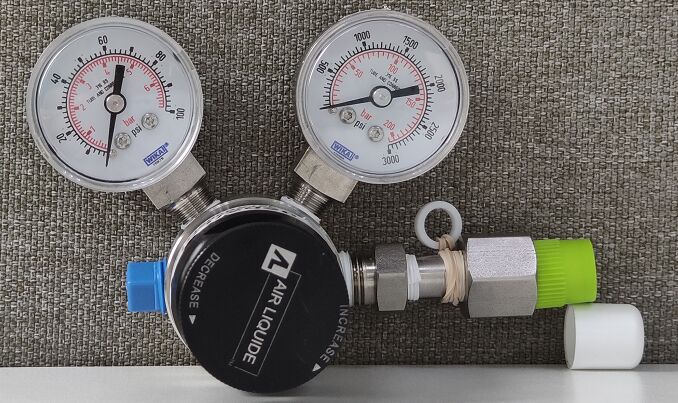

液化空氣 Scott/Air Liquide 高純VOC 壓力減壓閥
| 產品描述 | qty. | cat.# |
| CGA 180 (0-30
psig) | ea. | 26371 |
| CGA 180 (0-100
psig) | ea. | 26372 |
型號206和216減壓閥
高純，單級，不銹鋼材質，3.03毫升的低內部容積使得儀器在應用中可以得到快速清潔。
集成過濾器保護內部零件，延長減壓閥壽命；配套30AL或者7AL氣瓶。
High-Purity for Noncorrosive/Corrosive Service
Models 206 and 216
Designed for portable calibration and analyzer applications, these regulators are available
in both stainless steel and brass. Low internal volumes allow for rapid purging –
the Model 206 is a single-stage regulator with an internal volume of 3.03 cc, while
the Model 216 is a two-stage regulator with an internal volume of only 8.6 cc. Use the
Model 216 when constant delivery pressure is desired.
Benefits/Features
Compact and light weight for easy
transportation.
Low internal dead volume minimizes
purge time.
The diaphragm is convoluted to provide
excellent accuracy.
Inlet Pressure Range: 0–3000 psig
Maximum Inlet Pressure: 3000 psig
Outlet Pressure Range:
– 1–30 psig (cat.# 26371)
– 2–75 psig (cat.# 26372)
Maximum Delivery Pressure:
– 30 psig (cat.# 26371)
– 75 psig (cat.# 26372)
Fittings: CGA-180
Outlet Pressure Gauge:
– 1–30 psig (cat.# 26371)
– 2–75 psig (cat.# 26372)
Outlet Connection: 1/4" female NPT
Internal Volume: 3.03 cc
Materials of Construction:
– Body: Stainless steel
– Diaphragm: Stainless steel
– Seat: Kel-F
Scott/Air Liquide is now Airgas.
訂貨信息：
型號206和216減壓閥
| Model 206,216 | 輸送壓力范圍 Delivery Pressure Range | 輸送壓力表 Delivery Pressure Gauge | 氣缸壓力表 Cylinder Pressure Gauge |
| 黃銅 | 不銹鋼 | psig | bar | psig | bar | psig | bar |
| 單級Single-Stage |
|
|
|
|
|
|
| Q1-206AB-(*) | Q1-206AS-(*) | 1 – 30 | 0.1 – 2 | 0 – 60 | 0 – 4 | 0 – 3000 | 0 – 207 |
| Q1-206BB-(*) | Q1-206BS-(*) | 2 – 75 | 0.1 – 5 | 0 – 100 | 0 – 7 | 0 – 3000 | 0 – 207 |
| Q1-206CB-(*) | Q1-206CS-(*) | 4 – 150 | 0.3 – 10 | 0 – 200 | 0 – 14 | 0 – 3000 | 0 – 207 |
| 兩級Two-Stage |
|
|
|
|
|
|
| Q1-216AB-(*) | Q1-216AS-(*) | 1 – 30 | 0.1 – 2 | 0 – 60 | 0 – 4 | 0 – 3000 | 0 – 207 |
| Q1-216BB-(*) | Q1-216BS-(*) | 2 – 75 | 0.1 – 5 | 0 – 100 | 0 – 7 | 0 – 3000 | 0 – 207 |
| Q1-216CB-(*) | Q1-216CS-(*) | 4 – 150 | 0.3 – 10 | 0 – 200 | 0 – 14 | 0 – 3000 | 0 – 207 |
* Specify CGA.
Options: Model No. Q4-62B4MFL brass diaphragm valve
Model No. Q4-62S4MFL stainless steel diaphragm valve
